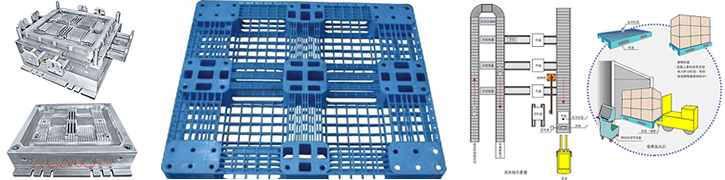

Pallet Mould
Sino Mould design the pallet mould with valve gate hot runner system, the special filter system design to allow recycled material injection moulding, the optimal injection & cooling system, approached the mould high speed injection.
- Moulds Name : pallet mould
- Moulds Size: 1200x1200x150
- Product description: Dual-layer pallet with 4 slides
- Moulds cavity: 1 cavity
- Moulds Size: 1800x1800x1100mm
- Suitable machine: 2000T Dakumar machine
- Moulds material: DIN 1.2311
- Moulds life: 1000K
- Runner system: 12 points ANOLE hot runner point gate
- Ejection system: ejector pin and ejecting block
- Moulds running: ejector pin+slide system
- Moulds features:complex mould structure, Fine cooling system design,ANOLE hot runner �professional filter system design, suitable for high speed recycled material injection production Stroke switch controls ejection process precisely,Oil and water integrator is more convenient for application and operation,Copper guide bush, abrasion resistance and prolong the mould life .
- Injection cycle time : 65 seconds
- Delivery time : 85 days
