bi-injection mould

Make the production of dual-color product fast and simply. Our sister company Dakumar Machinery also can offer the two colour rotary injection moulding machines.

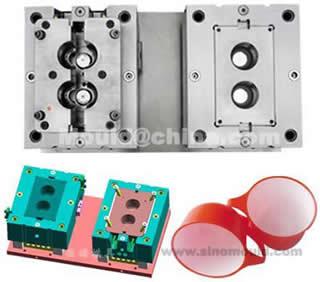

Double Colors cup mould

  • Moulds Name : Double colors cup Mould
  • Moulds Size:
  • Product description: Airline series coffee cup
  • Moulds cavity: 2 cavity
  • Moulds Size: 1080x500x600mm
  • Suitable machine: DKM260D Dual-color injection machine
  • Moulds material: DIN 1.2344
  • Moulds life: 5M
  • Runner system: 4 point ANOLE hot runner system
  • Ejection system: Center ejector
  • Moulds running: Full automaticity
  • Moulds features: Moderate/high complexity,Dual-color product,Make the production of dual-color product fast and simply ,Oil and water integrator is more convenient for application and operation
  • Injection cycle time : 18 seconds
  • Delivery time : 50 days

bi-injection mould,Double colors Mould
