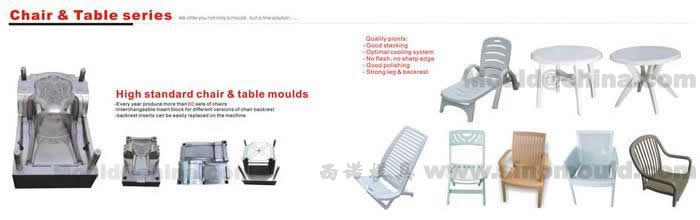

Arm Chair mould
Annually manufacturing over then 80 sets of chair moulds. Interchangeable inserts block for different chair backrest versions. Backrest inserts can be easily changed on the machine, we are also familiar with PC transparent chair with gas injection, various monoblock chair moulds with armrest or without.
- Moulds Name : Arm Chair mouldings
- Moulds Size:
- Product description: Interchangeable insert block for different versions of chair backrest and Seat
- Moulds cavity: 1 cavity
- Moulds Size: 1350x860x800mm
- Suitable machine: 750T Dakumar machine
- Moulds material: P20
- Moulds life: 800K
- Runner system: 1 point ANOLE hot runner direct cone gate
- Ejection system: ejector pin
- Moulds running: Full automaticity
- Moulds features: Simple structure mould . Optimal cooling system , Good polishing , Precision air venting , Interchangeable back design inserts
- Injection cycle time : 45 seconds
- Delivery time : 70 days
