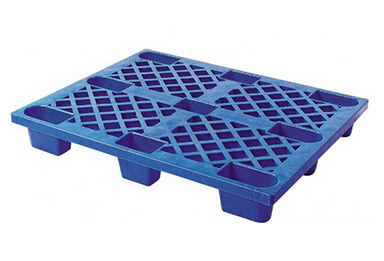

Pallet mould

Sino Mould design the pallet mould with valve gate hot runner system, the special filter system design to allow recycled material injection moulding, the optimal injection & cooling system, approached the mould high speed injection. Sino pallet mould can pass the drop test, loading test and all the chemical solutions for industrial pallet standard requirement.


Pallet Mould Name : pallet mould

Pallet Mould Size: 1200x1200x150

Pallet Material: HDPE MFI 8

Product description: Dual-layer pallet with 4 slides

Pallet Mould cavity: 1 cavity

Pallet Mould Size: 1800x1800x1100mm

Suitable machine: 2000T Dakumar machine

Pallet Mould material: DIN 1.2311

Pallet Mould life: 1000K

Runner system: 16 points ANOLE hot runner  gate

Ejection system: ejector pin and ejecting block

Pallet Mould running: ejector pin+slide system

Pallet Mould features:complex mould structure, Fine cooling system design,ANOLE hot runner professional filter system design, suitable for high speed recycled material injection production Stroke switch controls ejection process precisely,Oil and water integrator is more convenient for application and operation,Copper guide bush, abrasion resistance and prolong the mould life .

Injection cycle time : 95 seconds

Delivery time : 85 days
